LightAV.com
Price
|
Product
Shot
Click
for Larger Picture
|
Description
|
Retail
Price
|
|
Sub 80
US$ 219.95
|
|
- Cabinet Design
-port
tuned enclosure
- 12dB/Octave
variable crossover 40Hz -180Hz
- 150 watts RMS
power
amplifier
- 8” long throw
Earthquake subwoofer
- Speaker level
(high) audio input-up to 10 Volts
- RCA level (low)
audio input -0.5 to 2.3 Volts
- Auto turn on /
signal detection circuitry
- 180-degree phase
inverting switch
- Unobtrusive and
easy to position
- Versatile set-up
options with broad compatibility
- Dimensions (H x
W x
D) 24cm x 34cm x 35cm
- Weight 8.5
Kg
- Black ash finish
- Australian Hi-Fi and Home Theater Technology Review
-
|
$375.00 |
SuperNova
MKIV 10"
400
Watt Powered
Subwoofer (Black Veneer)
US$ 399.95
SuperNova
MKIV 10"
400 Watt Powered
Subwoofer (Cherry Veneer)
$349.95
|
|
- Black-ash or
Cherry finish
- One Tremor 10"
active driver
- One SLAPS-10 passive
radiator
- 400 Watt class
AB Amplifier
- Multi-position
remote sensor & control
- Dimension 12" x
12"
x 16"
- Weight 38 lbs
- Available in
Burl Woodgrain and a Piano Black Gloss Finish Dec 02
- Australian
Home Theater "Best Buys" August 2002 PDF
|
$899.95 |

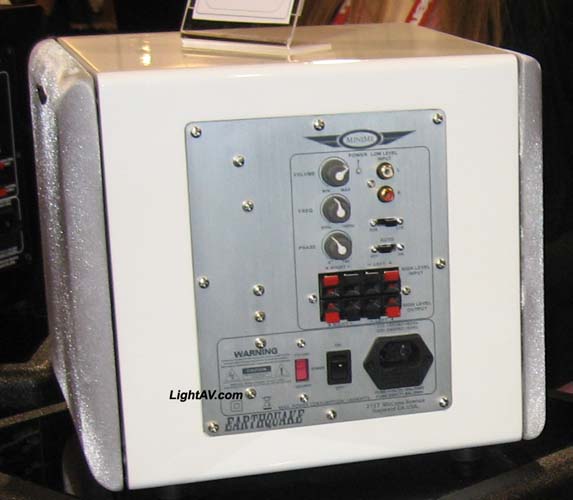

MiniMe P8W
MKV 8" White
US$ 549.95

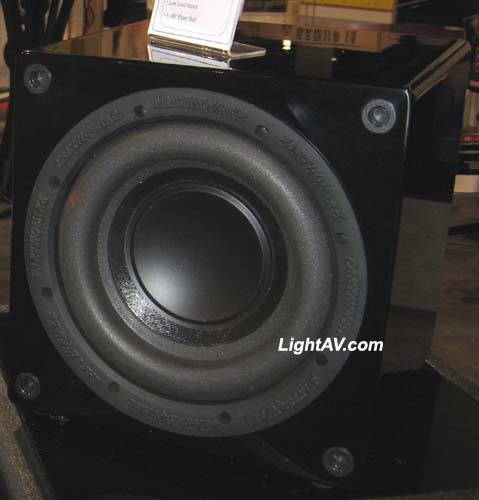

MiniMe P8B
MKV 8" Piano Black
US$ 599.95
|
|
- The MiniMe MKV
has a
much smaller cabinet than the exsisting MKV models, and accommodates a
tiny 8 in. driver new to the Earthquake family, providing a
suprising
bass response and high output unlike any other 8 in. on the market. The
SLAPS patented passive radiator ensures that even this tiny area moves
as
a absolute piston right through the subwoofer bandwidth and beyond.
- Driven by our
320W Class-D amplifier, this driver can produce king-sized amounts of
bass power with absolute control - enough for most large high-end
projects.
- All-inclusive
controls are provided so that the subwoofer can be integrated
seamlessly into either a multi-channel or 2-channel installation.
- Features:
- • Built in
320-Watt, high efficiency digital amplifier
- • Long throw,
premium quality drivers
- • Convenient
compact size
- • Automatic
signal-sensing turn-on and stand-by mode
- • Perfect for
all sub applications
- • Operation
status LEDs
- • SLAPS Patented
Passive radiator technology
- • RCA & high
level inputs
- • Selective
variable crossover
- Input
Sensitivity Full Output: 240mVrms from left input with volume control
at max, 90mVrms with volume control fully clockwise and both RCAs
used.
- Frequency
Adjustment:
- 50Hz -
160Hz
- Phase Shift:
0-180°
- High Cut Filter:
35Hz-100Hz
- Output Levels:
Greater than 108dB peak SPL (includes room gain) from 25Hz to 90Hz
- Sub Operation
Switch:
- In LFE position,
the frequency adjustment becomes disabled and the subwoofer runs in a
Full range
mode, from 20Hz - 2kHz. While in Sub position the subwoofer reverts to
the
manual frequency adjustment, allowing the user to operate and fine tune
the subwoofer.
- SuperNova MiniMe
MKV
Power 320 Watts /
160-Watts RMS
Driver 8”
high-performance with extra large magnet and long throw mechanical
design yield very high back emf. The result is extraordinarily high
operating efficiency that
is, more acoustic output for each watt of input. Also includes
Earthquake's
Patented 8" SLAPS (passive radiator)
Frequency
Response 22-160Hz
Voltage 110 /
240
Dimensions 10.5" x 11.75" x 10.5"
266.7mm x 298.45 x
266.7mm
Finish Piano
Black
|
$699.95 |
SuperNova Millenium
MKV 12" Cherry
600 Watts RMS
Subwoofer
US $899.95
SuperNova Millenium
MKV 12" Poly with Grills
600 Watts RMS Subwoofer
US$ 899.95

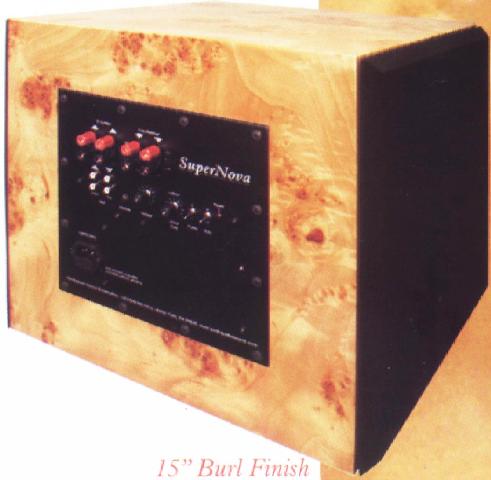

SuperNova Millenium
MKV 12" Burl Finish
600 Watts RMS
Powered Subwoofer
US$ 899.95
|
|
- SUPERNOVA
subwoofer system... Bring one home, you might not want to leave
again.....
- The SUPERNOVA
unsurpassable performance stems from:* Drone tuned high SPL enclosure.
- High Density
cabinet construction
- 590 Watts RMS,
class “D”, high efficiency (99%) power amplifier.
- AUTO-LOUD
corrective circuitry, compensates for deficiencies inherent in human
hearing. ..
- Remote
controlled for easy use.
- Bass Boost at
20Hz.
- Bass Cut at 10Hz
that eliminates inaudible frequencies .
- TRUE
SUBWOOFER... The SUPERNOVA is not just another woofer with an assumed
name... Its Impressive Sub Bass attenuation and High SPL levels excel
it ahead of the pack.
- Home Theater
Buyers Guide, January 1998. AAA rated, the SuperNova MKII linear
subharmonic response blends beautifully with high end systems. It
remains sonically invisible in upper bass, like a window washed
clean.
- ''The SuperNova
is an undeniably potent performer... ... The SuperNova was able to
scare the
bejeezus out of us..."
- "The output at
113dB at 35Hz is incredibly high, and the highest level attained by any
subwoofer ..." This is the new record for high output level for all
subwoofers reviewed so far. Widescreen Review, April 1998.
- "It's impressive
to
have dinosaur steps whomp you in chest and set your bi-fold closet
doors
quivering with each stride... Because of its high sensitivity and
prodigious
power capabilities... the end result is impressive thuds and
rumbling..." Stereophile Guide To Home Theater, February
1999.
- " The SuperNova
is quite simply the most amazing subwoofer I have ever tested." Digital
Home Entertainment
- Black-ash or
Polyurethane finish
- Black plexiglass
top cover
- One Magma-12
active
driver Double Stacked 1.5" Max Gauss Magnets, 7" Epoxy coated Super
SpiderSuper Wide Edge thermally pressed 1" surround, 3" XMax
- One SLAPS-12
passive radiator
- One BA212 - 590
watts digital amp 99% efficient, Optical Distortion Limiting circuit
- Multi-position
remote sensor & control
- 24 dB per Octave
Crossover variable from 50-150 Hz
- Dimension 15" x
15"
x 15"
- Weight 74 lbs
- Available in
Burl Woodgrain and a Piano Black Gloss Finish Dec 02
- USA
Home Theater 2001 PDF
- Home Theater Magazine Review DEC 2001
|
$1999.95 |
SuperNova
MKVI-12BLK
12" 600 Watt Powered
Subwoofer
US$ Call
SuperNova Millenium
MKVI-12Piano
12" 600 Watt Powered
Subwoofer
US$ Call

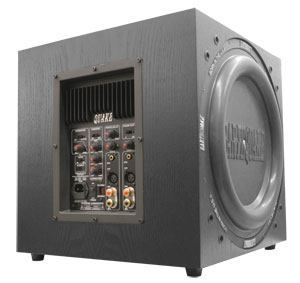

SuperNova Millenium
MKVI-15BLK
15" 600 Watt Powered
Subwoofer
US$ Call
SuperNova Millenium
MKVI-15Piano
15" 600 Watt Powered
Subwoofer
US$ Call
|
|
Earthquake Sound
Corporation is proud to introduce the next generation SuperNova MK
Series.
The new SuperNova
MKVI includes an all-new recessed amplifier with built-in room
correction. Many companies claim that they have room correction built
into their amplifiers. However, their subs only use level adjustment by
volume.
Earthquake's new
SuperNova subwoofers with built-in IQ amplifiers deliver the tools you
need to correctly adjust a room to precision audiophile status.
Most subs with
built-in amps use a simple equalization method that does not correct
the rooms' "phase" related problems. The new SuperNova MKVI subs have
true room correction that take time reflections and refractions into
consideration. These state of the art amplifiers fix both the arrival
time and equalization while others try to equalize rooms by adjusting
the volume. Would you call that room correction? The new 99% efficient
SuperNova subs with IQ amplifiers address the actual phase correction
problem along with the room EQ.
Room Correction:
20, 30
and 40Hz Room Equalization With 12dB range and Boost.
Optical Distortion
Limiting Circuitry (OoDL): ODL was created to eliminate audio amplifier
input stage clipping without distorting the audio signal.
Overdrive: Overdrive
is a patented feature that allows the Supernova amplifier to generate
maximum output with virtually any level of input audio signal.
SLAPS Passive Radiator
(Follow link for more info)
Full range speaker
outputs high level audio input Signal detection circuitry Variable,
24dB
per Octave, low pass filter 110 / 220 power connector
Low level (RCA) audio
output, in high pass mode @ 100Hz
- Features:
- XLR / RCA Input Connections
- Variable
Phase-Delay: Up to 20-ms
- Room
Equalization
- Subsonic
Filter
- Room Correction:
20Hz, 30Hz &
- 40Hz
Adjustable
- Phase Shift:
0-180°
- Dual Gains
Internally Mixed
- Music Sensing
ON/OFF
- SLAPS
(Symmetrically Loaded Audio Passive System)
- Available In
Black Ash Wood Veneer or Piano Black Lacquer Finish
- Model MKVI-12
- Frequency
Response 16Hz - 130Hz
- Amplifier
Power 600 Watts RMS, With Patented Class "J" Circuitry
- SNR 106 dB
Balanced
- Dimensions (H x
W x
D) 16 1/4" x 15 1/2" x 19 1/2
- Weight 73
Lbs.
- Bass Unit
12-inch Magma
- Passive
Radiator 12-inch
- Model MKVI-15
- Frequency
Response 15Hz - 120Hz
- Amplifier
Power 600 Watts RMS, With Patented Class "J" Circuitry
- SNR 106 dB
Balanced
- Dimensions (H x
W x
D) 17 3/4" x 17" x 21"
- Weight
86 Lbs.
- Bass Unit
15-inch Magma
- Passive
Radiator 15-inch
|
|
