LightAV.com
Price
|
Product Shot
|
Description
from Denon Site
|
Retail
Price
|
AVR-485S
Dolby Digital, Dolby Pro
Logic IIx and DTS A/V Receiver
US$ Discontinued
|
|
- • Dolby Pro Logic IIx, with
Cinema, Music and Game Modes
- • Dolby Digital Surround
EX and DTS ES decoding
- • Analog Devices Melody
32 bit DSP processor
- • 6 equal power amplifier
channels
- • 110 watts per channel
into 6 ohms, 1kHz, <.7%THD
- • Discrete power amplifier
stage
- • 5/6 Channel Stereo
- • Personal Memory Plus
- • Virtual Surround (for
use with 2 speakers)
- • Front left and right bass
and treble control
- • 24 bit, 96 kHz DACs
- • 24 bit, 96 kHz digital
interface receiver
- • 24 bit, 96 kHz stereo
PCM digital playback
- • Speaker A/B (front) selector
- • Front Panel A/V inputs
with cover
- • 6 Channel External Input
(for DVD-Audio/SACD) with wideband (100 kHz) frequency response
- • Assignable digital inputs,
1 optical, 1 coaxial
- • 3 HDTV Compatible Component
inputs, one output (30MHz Bandwith)
- • S-Video and Composite
video switching
- • Banana plug compatible
speaker terminals all channels
- • Subwoofer Pre-amp output
- • Glow-Key pre-programmed
remote features codes from other manufacturers; Glow in the dark main function
keys
- • Dimensions: 17.1"w x 5.8"h
x 16.4"d
|
$299 |

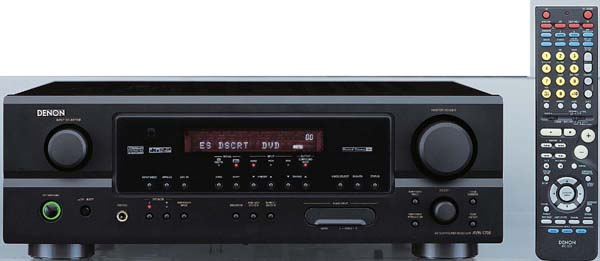

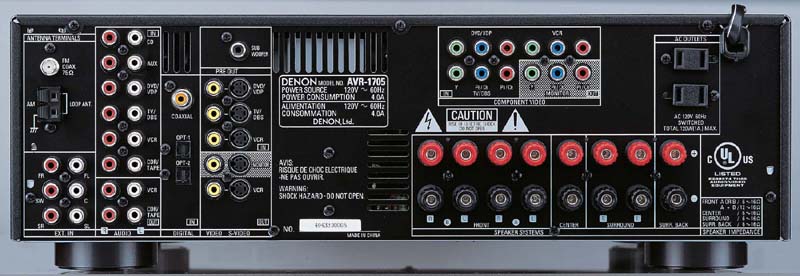

AVR 1705
Dolby Digital Surround EX,
Dolby Pro Logic IIx & DTS ES Discrete 6.1 A/V Receiver
US$ Discontinued
|
|
- • Dolby Digital Surround
EX, Pro Logic IIx decoding with Cinema, Music and Game Modes
- • dts ES Discrete 6.1 and
Matrix 6.1 decoding
- • dts Neo:6 Stereo to Surround decoding
- • dts ES 96/24 5.1 decoding for
DVD Video
- • Analog Devices HammerHead SHARC 32 bit floating
point DSP processor
- • 6 Channels equal power
amplifier section
- • 75 watts per channel (8
ohms, 20 Hz-20 kHz, <.05%THD)
- • 110 watts per channel
(6 ohms, 1 kHz, <.7%THD)
- • Analog Devices, 24 bit, 192 kHz high resolution DACs on all
eight channels
- • True 24 bit, 96 kHz Digital
Interface Receiver
- • 24 bit, 96 kHz A/D conversion
on all Stereo analog inputs (Not EXT. Inputs)
- • Adjustable High and Low Pass Crossover (40/60/80/100/120/150/200/250Hz)
- • Front left and right channel
bass and treble control
- • 3 Assignable Component
Video inputs (100MHz Bandwidth)
- • Video Conversion of Composite
to S-Video and/or to Component
- • 4 sets composite and 3
"S" video inputs
- • 5.1 external wide bandwidth (100 kHz) inputs for multi-channel formats, such as DVD-Audio and Super Audio
CD
- • 5/6/7 Channel Stereo
- • Digitally regulated volume control with .5dB increment adjustments and step range of -80 to
+15
- • Personal Memory Plus
- • 3 assignable digital inputs
(2 Optical, 1 Coaxial)
- • 8 analog inputs including
built-in AM/FM tuner
- • Direct Access Tuner presets by remote
- • Glo-Key pre-programmed
remote control
- • Dimensions: 17.1"w x 5.8"h
x 16.4"d
|
$399 |

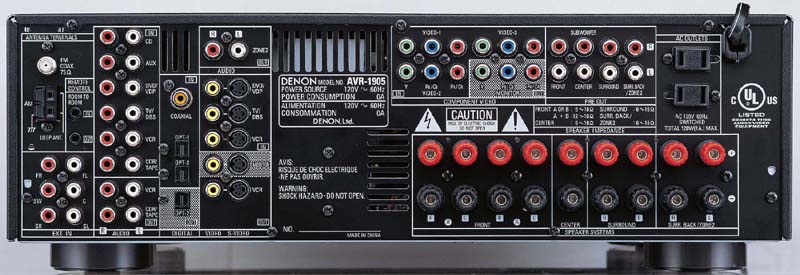

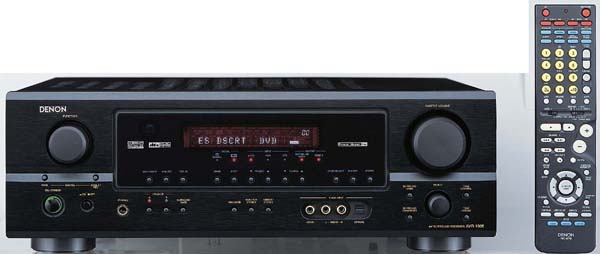

AVR 1905
7.1 Dolby Digital Surround
EX, Dolby Pro Logic IIx & DTS ES Discrete 6.1 A/V Receiver
US$ Discontinued
|
|
- • Dolby Digital Surround EX, Pro Logic IIx decoding with
Cinema, Music and Game Modes
- • dts ES Discrete 6.1 and
Matrix 6.1 decoding
- • dts Neo:6 Stereo to Surround
decoding
- • dts ES 96/24 5.1 decoding
for DVD Video
- • Analog Devices HammerHead
SHARC 32 bit floating point DSP processor
- • 7 Channels equal power amplifier
section
- • 80 watts per channel (8 ohms,
20 Hz-20 kHz, <.05%THD)
- • 110 watts per channel
(6 ohms, 1 kHz, <.7%THD)
- • Analog Devices, 24 bit,
192 kHz high resolution DACs on all eight channels
- • True 24 bit, 96 kHz Digital
Interface Receiver
- • 24 bit, 96 kHz A/D conversion
on all Stereo analog inputs (Not EXT. Inputs)
- • Adjustable High and Low
Pass Crossover (40/60/80/100/120/150/200/250Hz) • Front left and right channel
bass and treble control
- • 3 Assignable Component
Video inputs (100MHz Bandwidth), with On-Screen
Display
- • Video Conversion of Composite
to S-Video and/or to Component, with on-screen
display
- • 4 sets composite and 3
"S" video inputs
- • 5.1 external wide bandwidth
(100 kHz) inputs for multi-channel formats, such as DVD-Audio and Super Audio
CD
- • 5/6/7 Channel Stereo
- • Digitally regulated volume
control with .5dB increment adjustments and step range of -80 to +15
- • Personal Memory Plus
- • 3 assignable digital inputs
(2 Optical, 1 Coaxial)
- • 1 Optical digital output
- • 8 analog inputs including
built-in AM/FM tuner
- • True 2 Source, 2 Zone functionality with Discrete Power, Source Select and Volume control for
each zone
- • (1)Multi-Zone fixed stereo pre-amp level audio output; or variable level (variable with SRB/Z2 jacks in 5.1 surround
mode)
- • Power Amplifier Assign function, lets you assign 2 of the 7 amp channels to drive Zone 2
speakers directly
- • 7.1 Preamp outputs
- • Direct Access Tuner presets
by remote
- • Glo-Key pre-programmed
remote control
- • Remote I/O ports
- • Dimensions: 17.1"w x 6.7"h
x 16.4"d
|
$499 |
AVR 2105
7.1 A/V Receiver with Dolby
Digital Surround EX, Dolby Pro Logic IIx & DTS ES Discrete 6.1
US$ Discontinued
|
|
- • Dolby Digital Surround
EX, Pro Logic IIx decoding with Cinema and Music Modes
- • DTS Extended Surround Discrete 6.1 decoding
- • DTS Extended Surround Matrix 6.1 decoding
- • DTS Neo:6 Cinema &
Music Surround decoding •
- DTS ES 96/24 5.1 decoding
for DVD Video
- • Analog Devices HammerHead,
32 bit floating point DSP processor
- • New 7.1 channel Auto-Setup function with included DENON microphone DM-S305
- • 7 Channels equal power
amplifier section
- • 90 watts per channel (8 ohms,
20 Hz-20 kHz, <.05%THD)
- • 125 watts per channel (6 ohms,
1 kHz, <.7%THD)
- • Analog Devices 24 bit,
192 kHz high resolution DACs on all eight channels
- • True 24 bit, 96 kHz Digital
Interface Receiver
- • 24 bit, 96 kHz A/D conversion
on all Stereo analog inputs (Not EXT. Inputs)
- • Adjustable High and Low
Pass Crossover (40/60/80/100/120/150/200/250Hz)
- • Front left and right channel
bass and treble control
- • 3 Assignable component
video inputs (100MHz), with On-Screen Display
- •Video Conversion of Composite
to S-Video and/or to Component, with on-screen display •
- 5 sets composite and "S"
video inputs
- • 5.1 external wide bandwidth
(100 kHz) analog inputs for multi-channel formats (such as DVD-Audio/SACD)
- • 5/6/7 Channel Stereo
- • Digitally regulated volume
control with .5dB increment adjustments and step range of -80 to +15
- •Personal Memory Plus
- • 4 assignable digital inputs
(3 Optical, 1 Coaxial)
- • 1 Optical digital output
- • 9 analog inputs including built-in
AM/FM tuner •
- True 2 Source, 2 Zone functionality
with Discrete Power, Source Select and Volume control for each zone
- • (1)Multi-Zone fixed stereo
pre-amp level audio output; or variable level (variable with SRB/Z2 jacks
in 5.1 surround mode) •
- 7.1 Preamp outputs
- • Power Amplifier Assign
function, lets you assign 2 of the 7 amp channels to drive second zone speakers
directly
- • On-Screen Display
- • Pre-programmed/learning
Glow Key remote
- • Remote I/O ports
- • Dimensions: 17.1"w x 6.7"h
x 16.4"d
|
$649 |
AVR 2805
7.1 A/V Receiver with Dolby
Digital Surround EX, Dolby Pro Logic IIx & DTS ES Discrete 6.1
US$ Discontinued
|
|
- • Dolby Digital Surround
EX, Pro Logic IIx decoding with Cinema, Music and Game Modes
- • dts ES Discrete 6.1 and
Matrix 6.1 decoding
- • dts Neo:6 Stereo to Surround
decoding
- • dts ES 96/24 5.1 decoding
for DVD Video
- • Analog Devices HammerHead
SHARC 32 bit floating point DSP processor
- • New 7.1 channel Auto-Setup
and Room EQ function with included DENON microphone DM-S305
- • 7 Channels equal power
amplifier section
- • 100 watts per channel (8 ohms,
20 Hz-20 kHz, <.05%THD)
- • 135 watts per channel (6 ohms,
1 kHz, <.7%THD)
- • 16 Analog Devices, 24 bit, 192 kHz high resolution DACs on all eight channels, in differential configuration
- • Real 24 bit, 96 kHz Digital
Interface Receiver
- • 24 bit, 96 kHz A/D conversion
on all Stereo analog inputs (Not EXT. Inputs)
- • Pure Direct mode defeats Video,
Front Panel Display circuitry and with Analog sources the Digital circuitry
- • ALPHA 24 Processing on Front
Channels
- • Adjustable High and Low
Pass Crossover (40/60/80/100/120/150/200/250Hz)
- • 3 Assignable Component
Video inputs (100MHz Bandwidth), with On-Screen Display
- • Video Conversion of Composite
to S-Video and/or to Component, with on-screen display
- • 7 sets composite and "S" video
inputs
- • 7.1 external wide bandwidth
(100 kHz) inputs for multi-channel formats, such as DVD-Audio and Super Audio
CD
- • 5/6/7 Channel Stereo
- • Digitally regulated volume
control with .5dB increment adjustments and step range of -80 to +15
- • Audio Delay adjustment
to match audio signals with video signals(0-200ms) • Personal Memory Plus
- • 7 assignable digital inputs
(5 Optical, 2 Coaxial)
- • 2 Optical digital outputs
- • 11 analog inputs including built-in
AM/FM tuner
- • True 2 Source, 2 Zone
functionality with Discrete Power, Source Select and Volume control for
each zone
- • (1)Multi-Zone stereo pre-amp
level audio outputs, fixed or variable level
- • (1) Multi-Zone Composite Video output
- • Power Amplifier Assign
function, lets you assign 2 of the 7 amp channels to drive Zone 2 speakers
directly
- • Direct Access Tuner presets
by remote
- • Glo-Key pre-programmed
remote control with learning function
- • RS-232C Port for Third Party
Control Systems
- • Remote I/O ports
- • Assignable +12v triggers (2)
- • Detachable Power cord
- • Dimensions: 17.1"w x 6.7"h
x 16.4"d
|
$899 |

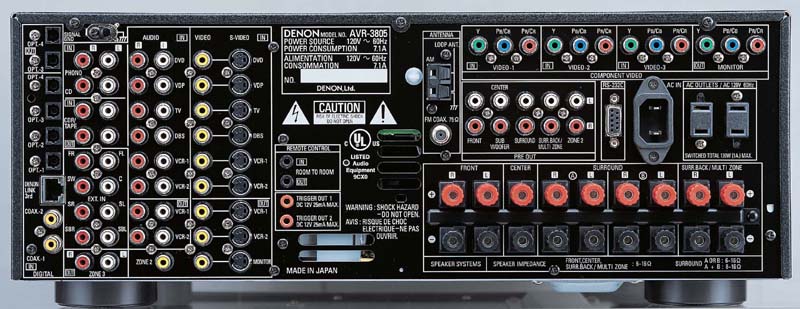

AVR 3805
7.1 A/V Receiver with Dolby
Digital Surround EX, Dolby Pro Logic IIx & DTS ES Discrete 6.1
US$ Discontinued
|
|
- • Dolby Digital Surround
EX, Pro Logic IIx decoding with Cinema,Music and Game Modes
- • dts ES Discrete 6.1 and
Matrix 6.1 decoding
- • dts Neo:6 Stereo to Surround
decoding
- • dts ES 96/24 5.1 decoding
for DVD Video
- • HDCD decoding
- • New DDSC-Digital featuring
Analog Devices HammerHead SHARC 32 bit floating point DSP processor
- • New Auto-Setup and Room
EQ function with optional DENON microphone DM-S305 or other manufacturers
microphone
- • 7 Channels equal power
amplifier section
- • 120 watts per channel (8 ohms,
20 Hz-20 kHz, <.05%THD)
- • 160 watts per channel (6 ohms,
1 kHz, <.7%THD)
- • 16 Burr-Brown PCM-1791 24 bit, 192 kHz high resolution DACs
on all eight channels, in differential configuration
- • Real 24 bit, 192 kHz Digital
Interface Receiver
- • 24 bit, 192 kHz A/D conversion (Burr-Brown PCM-1804) on
all Stereo analog inputs (Not EXT. Inputs)
- • Pure Direct mode defeats
Video, Front Panel Display circuitry and with Analog sources the Digital circuitry
- • ALPHA 24 Processing Plus (AL24+) on all channels
- • Adjustable High and Low
Pass Crossover (40/60/80/100/120/150/200/250Hz)
- • 3 Assignable Component
Video inputs (100MHz Bandwidth), with On-Screen Display
- • Video Conversion of Composite
to S-Video and/or to Component, with on-screen display
- • 7 sets composite and "S"
video inputs
- • 7.1 external wide bandwidth
(100 kHz) inputs for multi-channel formats, such as DVD-Audio and Super Audio
CD
- • 5/7 Channel Stereo
- • Digitally regulated volume
control with .5dB increment adjustments and step range of -80 to +15
- • Audio Delay adjustment to match
audio signals with video signals(0-200ms)
- • Personal Memory Plus
- • DENON Link 3rd (Super
Audio CD & DVD-Audio) compatible digital input
- • 7assignable digital inputs
(5 Optical, 2 Coaxial)
- • 2 Optical digital outputs
- • 11 analog inputs including
built-in AM/FM tuner
- • True 3 Source, 3 Zone functionality with Discrete Power,
Source Select and Volume control for each zone
- • (2)Multi-Zone stereo pre-amp
level audio outputs, fixed or variable level (Zone 3 fixed only)
- • (1) Multi-Zone Composite
Video output
- • Power Amplifier Assign
function, lets you assign 2 of the 7 amp channels to drive Zone 2 or 3 speakers
directly
- • Direct Access Tuner presets
by remote
- • New EL backlighting pre-programmed/learning remote
- • RS-232C Port for Third
Party Control Systems
- • Remote I/O ports
- • Assignable +12v triggers
(2)
- • Detachable Power cord
- • Full System Setup/Parameter control on front panel, with feedback on front panel display (Monitor is not needed
for setup)
- • Dimensions: 17.1"w x 6.7"h
x 16.4"d
|
$1199 |
AVR 5805
7.1 A/V Reference Receiver
with THX Ultra2 Certified THX Surround EX/DTS ES 6.1 Discrete/Dolby Digital
EX Pro Logic II/DTS Surround
US$ Discontinued
|
|
|
$6000 |
