Model
Number
|
Product Shot
|
Description
|
Retail
Price
|
|
QX2180
Discontinued
|
 |
-
Dual-color LED indicator for power-on
and protection
-
Muting circuitry for soft turn-on
and turn-off
-
Fully complimentary output stages
-
Advanced overload and thermal protection
circuitry
-
High current bussbars for all high
current, high voltage stages
-
PWM MosFet power supply
-
Gold plated high current power and
speakers terminals Gold plated signal input RCA jacks Unique chrome powder
coated finish Die-cast gold plated logo badges Isolated mounting feet QLINKable
-
Frequency Response +/-1dB, 20Hz
to 20 kHZ
-
Signal to Noise Ratio (A-weighted)
>100dB
-
Max Continuous Bridged Power @ 1%
THD 180 watts x 1 into 4 ohms @ 14.4 Vdc Max
-
Continuous Power per Channel @ 1%
THD 90 watts x 2 into 2 ohms @ 14.4 Vdc Nominal
-
Continuous Power per Channel @ 1
% THD 55 Watts x 2 into 4 ohms @ 14.4 Vdc IASCA/USAC
-
Power Rating 40 Watts x 2 into 4
ohms @ 12.5 Vdc
-
Minimum Load when Bridged 4 Ohms
-
Minimum Load per Channel 2 Ohm
-
Input Signal Voltage Range 0.1 volts
to 2 volts
-
Crossover Type Cont. Variable Linkwitz
Riley HP,LP
-
Crossover Slope 12 dB per octave
Crossover
-
Frequency Range 30-600Hz F
-
Hi-level Input yes
-
Bass Boost 0- to +15dB @ 45 hZ
-
Power Supply Voltage 10Vdc to 15.5Vdc
-
Recommended Fuse 30 amp
-
Dimensions 10.13L x 8.50W x 2.10H
|
$ |

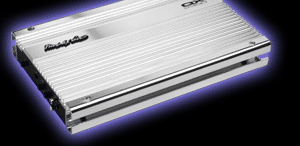

QX2350
Discontinued
|
 |
-
Dual-color LED indicator for power-on
and protection
-
Muting circuitry for soft turn-on
and turn-off
-
Fully complimentary output stages
-
Advanced overload and thermal protection
circuitry
-
High current bussbars for all high
current, high voltage stages
-
PWM MosFet power supply
-
Gold plated high current power and
speakers terminals
-
Gold plated signal input RCA jacks
Unique chrome powder coated finish
-
Die-cast gold plated logo badges
Isolated mounting feet QLINKable
-
Frequency Response +/-1dB, 20Hz
to 20 kHZ
-
Signal to Noise Ratio (A-weighted)
>100dB
-
Max Continuous Bridged Power @ 1%
THD 350 watts x 1 into 4 ohms @ 14.4 Vdc
-
Max Continuous Power per Channel
@ 1% THD 175 watts x 2 into 2 ohms @ 14.4 Vdc
-
Nominal Continuous Power per Channel
@ 1 % THD 125 Watts x 2 into 4 ohms @ 14.4 Vdc IASCA/USAC
-
Power Rating 100 Watts x 2 into
4 ohms @ 12.5 Vdc
-
Minimum Load when Bridged 4 Ohms
-
Minimum Load per Channel 2 Ohm
-
Input Signal Voltage Range 0.1 volts
to 2 volts
-
Input Impedance, Standard/Balanced
12kOhms, n/a
-
Crossover Type Cont. Variable Linkwitz
Riley HP,LP
-
Crossover Slope 12 dB per octave
-
Crossover Frequency Range 30-600Hz
-
Factory Crossover Setting n/a Hi-level
Input yes (US models only)
-
Bass Boost 0- to +15dB @ 45 hZ
-
Power Supply Voltage 10Vdc to 15.5Vdc
-
Recommended Fuse 40 amp
-
Dimensions 14.86L x 8.50W x 2.10H
|
$ |

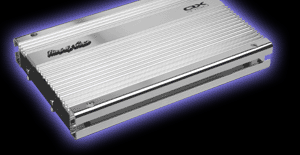

QX4150
Discontinued
|
 |
-
LED indicators for power-on and
protection
-
Separate front and rear adjustable
input sensitivity controls
-
Muting circuitry for soft turn-on
and turn-off
-
Fully complimentary output stages
-
Advanced overload and thermal protection
circuitry
-
High current bussbars for all high
current, high voltage stages
-
PWM MosFet power supply
-
Gold plated high current power and
speakers terminals
-
Gold plated signal input
-
RCA jacks Unique chrome powder coated
finish
-
Die-cast gold plated logo badges
Isolated mounting feet QLINKable
-
Frequency Response +/-1dB, 20Hz
to 20 kHZ
-
Signal to Noise Ratio (A-weighted)
>100dB
-
Max Continuous Bridged Power @ 1%
THD 150 watts x 2 into 4 ohms @ 14.4 Vdc
-
Max Continuous Power per Channel
@ 1% THD 75 watts x 4 into 2 ohms @ 14.4 Vdc
-
Nominal Continuous Power per Channel
@ 1 % THD 60 Watts x 4 into 4 ohms @ 14.4 Vdc
-
IASCA/USAC Power Rating 50 Watts
x 4 into 4 ohms @ 12.5 Vdc
-
Minimum Load when Bridged 4 Ohms
-
Minimum Load per Channel 2 Ohm
-
Input Signal Voltage Range 0.1 volts
to 2 volts
-
Crossover Type Cont. Variable Linkwitz
Riley HP,LP
-
Input Impedance, Standard/Balanced
12kOhms, n/a
-
Crossover Slope 12 dB per octave
-
Crossover Frequency Range 90 or
125Hz Highpass / 30-600Hz
-
Lowpass Factory Crossover Setting
90Hz Highpass
-
Hi-level Input yes (US models only)
-
Bass Boost 0- to +15dB @ 45 hZ
-
Power Supply Voltage 10Vdc to 15.5Vdc
-
Recommended Fuse 40 amp
-
Dimensions 14.86L x 8.50W x 2.10H
|
$ |

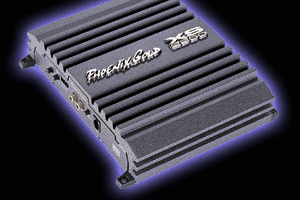

XS2200
Discontinued
|
 |
-
Dynamic Power (IHF-202): 4 ohm Mono
200 x 1
-
2 ohm Per Ch. 100 x 2
-
4 ohm Per Ch. 50 x 2
-
2 Channel Power Amplifier
-
Dead Silent Turn [on/off] TAIM®
Circuitry
-
2 ohm Load Approved
-
Superior Thermal Capacity
-
Built-in Low pass
-
Level Control Differential
-
Speaker Level Inputs for Lease installs
-
18dB Crossover [HP/LP] with Aux
Output
-
Variable Crossover Range: 40 to
800Hz
-
Dimensions: 8.25"L x 9.25"W x 2.10"H
|
$ |

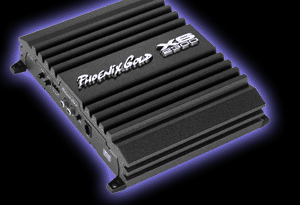

XS2300
Discontinued
|
 |
-
2 Channel Mosfet Amplifier
-
PWM Mosfet Power Supply Defeatable
-
Advanced Overload and Thermal Protection
-
Hi Level Input Connections
-
Advanced Muting Circuitry Eliminates
Turn-On And Turn-Off Noises
-
Metal Film Capacitors/Resistors
In Signal Path
-
24kt Gold Plated High Current Power
And Speaker Terminals
-
Isolation Mounting Feet
-
Optional XS Link For Seamless Multiple
Amplifier Installation
-
Frequency Response +/-1dB, 20Hz
to 20 kHZ
-
Signal to Noise Ratio (A-weighted)
>100dB
-
Max Continuous Bridged Power @ 1%
THD 300 watts x 1 into 4 ohms @ 14.4 Vdc
-
Max Continuous Power per Channel
@ 1% THD 150 watts x 2 into 2 ohms @ 14.4 Vdc
-
Nominal Continuous Power per Channel
@ 1 % THD 75 Watts x 2 into 4 ohms @ 14.4 Vdc
-
IASCA/USAC Power Rating 25 Watts
x 2 into 4 ohms @ 12.5 Vdc
-
Minimum Load when Bridged 2 Ohms
-
Minimum Load per Channel 1 Ohm
-
Input Signal Voltage Range 0.1 volts
to 2 volts
-
Crossover Type Resisitor Network,
Linkwitz Riley, Lowpass
-
Crossover Slope 24 dB per octave
-
Crossover Frequency Range 20-550Hz
-
Factory Crossover Setting 85 Hz
-
Auxilary Output Channels - Auxilary
Output Frequency Range n/a
-
Hi-level Input yes
-
Bass Boost 0- to +18dB @ 45 hZ
-
Power Supply Voltage 10Vdc to 15.5Vdc
-
Recommended Fuse 30 amp
-
Dimensions 8.25L x 9.25W x 2.10
|
$ |

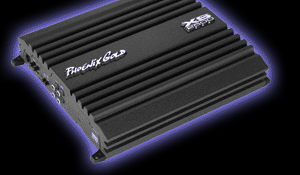

XS2500
Discontinued
|
 |
-
2 Channel Mosfet Amplifier
-
PWM Mosfet Power Supply Defeatable
-
Advanced Overload and Thermal Protection
-
Hi Level Input Connections
-
Advanced Muting Circuitry Eliminates
Turn-On And Turn-Off Noises
-
Metal Film Capacitors/Resistors
In Signal Path
-
24kt Gold Plated High Current Power
And Speaker Terminals
-
Isolation Mounting Feet
-
Optional XS Link For Seamless Multiple
Amplifier Installation
-
Frequency Response +/-1dB, 20Hz
to 20 kHZ
-
Signal to Noise Ratio (A-weighted)
>100dB
-
Max Continuous Bridged Power @ 1%
THD 500 watts x 1 into 4 ohms @ 14.4 Vdc
-
Max Continuous Power per Channel
@ 1% THD 250 watts x 2 into 2 ohms @ 14.4 Vdc
-
Nominal Continuous Power per Channel
@ 1 % THD 150 Watts x 2 into 4 ohms @ 14.4 Vdc
-
IASCA/USAC Power Rating 50 Watts
x 2 into 4 ohms @ 12.5 Vdc
-
Minimum Load when Bridged 2 Ohms
-
Minimum Load per Channel 1 Ohm
-
Input Signal Voltage Range 0.1 volts
to 2 volts
-
Crossover Type Resisitor Network,
Linkwitz Riley,
-
Highpass/Lowpass Crossover Slope
24 dB per octave
-
Crossover Frequency Range 20-550Hz
-
Factory Crossover Setting 85Hz
-
Auxilary Output Channels 2 Auxilary
Output Frequency Range Rnet
-
Bass Boost 0- to +18dB @ 45 hZ
-
Power Supply Voltage 10Vdc to 15.5Vdc
-
Recommended Fuse 60 amp
-
Dimensions 9.25L x 9.25W x 2.10H
|
$ |

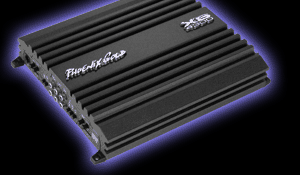

XS4300
Discontinued |
 |
-
4 Channel Mosfet Amplifier
-
PWM Mosfet Power Supply Defeatable
-
Advanced Overload and Thermal Protection
-
Dual Hi Level Input Connections
-
Advanced Muting Circuitry Eliminates
Turn-On And Turn-Off Noises
-
Metal Film Capacitors/Resistors
In Signal Path
-
24kt Gold Plated High Current Power
And Speaker Terminals
-
Isolation Mounting Feet
-
Optional XS Link For Seamless Multiple
Amplifier Installation
-
Dual Low Pass level control
-
Frequency Response +/-1dB, 20Hz
to 20 kHZ
-
Signal to Noise Ratio (A-weighted)
>100dB
-
Max Continuous Bridged Power @ 1%
THD 150 watts x 2 into 4 ohms @ 14.4 Vdc
-
Max Continuous Power per Channel
@ 1% THD 75 watts x 4 into 2 ohms @ 14.4 Vdc
-
Nominal Continuous Power per Channel
@ 1 % THD 35 Watts x 4 into 4 ohms @ 14.4 Vdc
-
IASCA/USAC Power Rating 12 Watts
x 4 into 4 ohms @ 12.5 Vdc
-
Minimum Load when Bridged 2 Ohms
-
Minimum Load per Channel 1 Ohm
-
Input Signal Voltage Range 0.1 volts
to 2 volts
-
Crossover Type Resisitor Network,
Linkwitz Riley,
-
Highpass/Lowpass
-
Crossover Slope 24 dB per octave
-
Crossover Frequency Range 20-550Hz
-
Factory Crossover Setting 85 Hz
-
Auxilary Output Channels 2
-
Auxilary Output Frequency Range
Highpass or Lowpass, Opposite of Speaker Output
-
Bass Boost 0- to +18dB @ 45 hZ
-
Power Supply Voltage 10Vdc to 15.5Vdc
-
Recommended Fuse 40 amp
-
Dimensions 12.25L x 9.25W x 2.10H
|
$ |

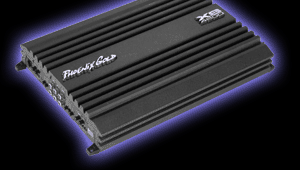

XS4600
Discontinued
|
 |
-
4 Channel Mosfet Amplifier
-
PWM Mosfet Power Supply Defeatable
-
Advanced Overload and Thermal Protection
-
Dual Hi Level Input Connections
-
Input Sensitivity Control
-
Advanced Muting Circuitry Eliminates
Turn-On And Turn-Off Noises
-
Metal Film Capacitors/Resistors
In Signal Path
-
24kt Gold Plated High Current Power
And Speaker Terminals
-
Isolation Mounting Feet Optional
-
XS Link For Seamless Multiple Amplifier
Installation
-
Dual Low Pass level control
-
Frequency Response +/-1dB, 20Hz
to 20 kHZ
-
Signal to Noise Ratio (A-weighted)
>100dB
-
Max Continuous Bridged Power @ 1%
THD 300 watts x 2 into 4 ohms @ 14.4 Vdc
-
Max Continuous Power per Channel
@ 1% THD 150 watts x 4 into 2 ohms @ 14.4 Vdc
-
Nominal Continuous Power per Channel
@ 1 % THD 75 Watts x 4 into 4 ohms @ 14.4 Vdc
-
IASCA/USAC Power Rating 25 Watts
x 4 into 4 ohms @ 12.5 Vdc
-
Minimum Load when Bridged 2 Ohms
-
Minimum Load per Channel 1 Ohm
-
Input Signal Voltage Range 0.1 volts
to 2 volts
-
Crossover Type Resistor Network,
Linkwitz, Highpass/Lowpass
-
Crossover Slope 24 dB per octave
-
Crossover Frequency Range 20-550Hz
-
Factory Crossover Setting 85Hz
-
Auxilary Output Channels 2
-
Auxilary Output Frequency Range
Highpass or Lowpass, Opposite of Rear
-
Bass Boost 0- to +18dB @ 45 hZ
-
Power Supply Voltage 10Vdc to 15.5Vdc
-
Recommended Fuse 60 amp
-
Dimensions 14.25L x 9.25W x 2.10H
|
$ |
XS6600
Discontinued |
 |
-
Frt / Rr Section Sub section 4 ohm
Mono 180 x 2 , 300 x 1
-
2 ohm Per Ch. 90 x 4 150 x 2
-
4 ohm Per Ch. 50 x 4
-
6 Channel Power Amplifier
-
Dead Silent Turn [on/off] TAIM®
Circuitry
-
2 Ohm Load Approved
-
Superior Thermal Capacity
-
Built-in Low pass
-
Level Control Differential
-
Speaker Level Inputs for Lease installs
-
24dB Crossover [HP/LP] with Aux
Output
-
Adjustable Crossover Range: 40 to
800Hz
-
Dimensions: 16.6" L X 11.5" W X
2.1" H
|
$ |
<
>
