LightAV.com Price	Product Shot Click for larger picture	Description	Retail Price
HFi Series HFi12D4 12" Dual 4 Ohm US $58.95 HFi12S4 12" Single 4 Ohm US $58.95		Common Features -12-lnch DVC and SVC Subwoofer -High-Energy Magnet -For Ported or Sealed Enclosures -Black Polypropylene Cone -Poly-Mica Cone Damping -Chrome Speaker Frame -Multi-Layer High-Temp VC -Front-Plate & Voice-Coil Cooling -Integrated Spider Tinsel-Lead Design -Hi-Excursion Rubber Surround -High-Strength Suspension Material -Push & Insert Wire Terminals -Anti-Resonant Rubber Magnet Boot -1" rubber surround, single spider -Injected poly light rigid cone -Heat dispersing ported back plate -Chrome stamped steel basket -High strength ABS motor cover Model................................ HFi 1204.......... HFi12S4 Watts Peak Power......................600..................600 Watts RMS Power......................300..................300 DVC I mp./Ohms........................ .2+2......................4	$129 $129

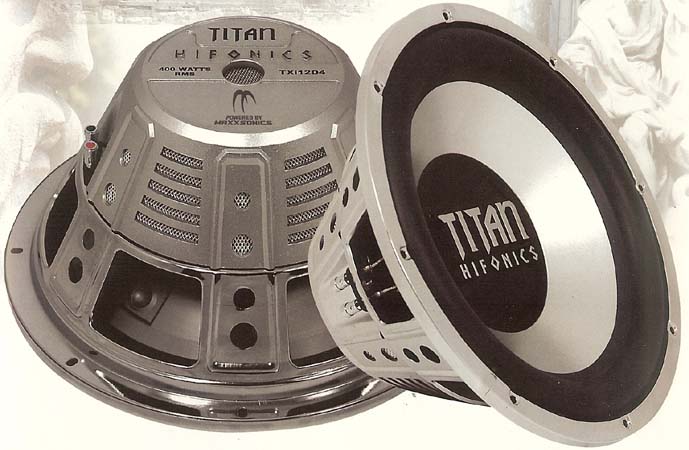

TXi Series TXi12D4 12" 400 RMS Dual 4 Ohm Subwoofer US $68.95 TXi12S4 12" 400 RMS Single 4 Ohm Subwoofer US $68.95		Common Features -12-lnch DVC and SVC Subwoofer -Polypropylene Dustcap -High-Energy Magnet -For Ported or Sealed Enclosures -Silver Laminate Cone -Chrome Speaker Frame -Multi-Layer High-Temp VC -Front-Plate & Voice-Coil Cooling -Integrated Spider Tinsel-Lead Design -Hi-Excursion Rubber Surround -High-Strength Suspension Material -Push & Insert Wire Terminals -1" rubber surround, single spider -Injected poly light rigid cone -Heat dispersing ported back plate -Chrome stamped steel basket -High strength ABS motor cover ModeL................................ TXi12D4.......... TXi12S4 Watts Peak Power.....................800..................800 Watts RMS Power.....................400..................400 DVC Imp./Ohms....................... .2+2......................4	$179 $179

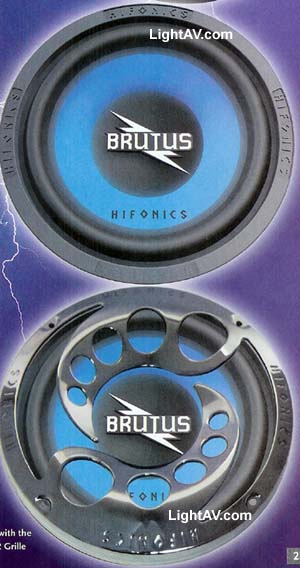

Brutus Series BX10D2 US $Discontinued BX10D4 US $Discontinued BX12D2 US $Discontinued BX12D4 US $Discontinued BX15D2 US $Discontinued BX10SQD4 US $Discontinued BX12SQD4 US $Discontinued		Common Features 100 Oz Double Stacked Magnet assembly 2.5 inch 4 Layer Hi-Temp Aluminum Voice Coils Woven Glass-Fiber Layered Composite Cone Integrated One-Piece Spider Tinsel Lead Design White Chrome Steel Speaker Frame with Rubber Front Gasket 1" Tall NBR Reinforced Rubber Surround Rubber Magnet Boot Ported Nickel Plated Back-Plate for Heat Dispersion Nickel Plated Push Terminals Conex Spider Illuminated Brutus Speaker Cone For Vented and Sealed Enclosures BX10D2/BX10D4 10" Subwoofer Power Handling 500 W RMS/ 1000 Peak Dual 2 Ohm Voice Coil / Dual 4 Ohm Voice Coil Options Sensitivity 92.88 dB / 90.56 dB FS 33.12 Hz / 34Hz XMax 15 mm Sealed Enclosure Size 0.4 Cu Ft (Fc=53.61 Hz / 54.59 Hz) Ported Enclosure Size 0.4 Cu Ft (Fb=43.89 Hz / 44.19 Hz, Port Freq. 53.5 Hz, Port Size 2.5" X 10") BX12D2/BX12D4 12" Subwoofer Power Handling 600 W RMS/ 1200 Peak Dual 2 Ohm Voice Coil / Dual 4 Ohm Voice Coil Options Sensitivity 95.77 dB / 93.39 dB FS 31.05 Hz / 31.77Hz XMax 15 mm Sealed Enclosure Size 1.0 Cu Ft (Fc=50.78 Hz / 51.7 Hz) Ported Enclosure Size 1.0 Cu Ft (Fb=36.37 Hz / 36.74 Hz, Port Freq. 39.81 Hz , Port Size 3" X 10") BX15D2 15" Subwoofer Power Handling 700 W RMS/ 1400 Peak Dual 2 Ohm Voice Coil Sensitivity 97.84 dB FS 27.57 Hz XMax 15 mm Sealed Enclosure Size 2.0 Cu Ft (Fc=56.6 Hz) Ported Enclosure Size 3.0 Cu Ft (Fb=37.22 Hz, Port Freq. 41.74 Hz, Port Size 3.5" X 10") BX10SQD4 10" Square Subwoofer Power Handling 600 W RMS/ 1200 Peak Dual 4 Ohm Voice Coil Options Sensitivity 91.37 dB @ 2.83v FS 25.06Hz Qts = 0.442 VAS = 51 Liters XMax 15 mm Sealed Enclosure Size 0..8 Cu Ft (Fc=50.42 Hz) Ported Enclosure Size 0.8 Cu Ft (Fb=37.14 Hz, Port Freq. 44.51 Hz, Port Size 3.0" X 10") BX12SQD4 12" Square Subwoofer Power Handling 600 W RMS/ 1200 Peak Dual 4 Ohm Voice Coil Options Sensitivity 93.77 dB @ 2.83v FS 23.43Hz Qts = 0.488 VAS = 116 Liters XMax 15 mm Sealed Enclosure Size 1.5 Cu Ft (Fc=41.35 Hz) Ported Enclosure Size 1.5 Cu Ft (Fb=34.71 Hz, Port Freq. 37.22 Hz , Port Size 3.5" X 10")	$110 $125 $140
Olympus Series OLM1612 12" 1600 Watts RMS DB Drag Competition Subwoofer US $259.95 OLM1615 15" 1600 Watts RMS DB Drag Competition Subwoofer US $289.95 OLM2412 12" 2400 Watts RMS DB Drag Competition Subwoofer US $299.95 OLM2415 15" 2400 Watts RMS DB Drag Competition Subwoofer US $319.95	Boxes for Olympus Click Here	Common Features '12-lnch DVC Subwoofer 'For Ported or Sealed Enclosures '1-0hm, or 4-0hm Operation '76mm Dual 2-0hm + 2-0hm Voice-Coil '160 oz. High-Energy Magnet 'Fiber-Glass Infused FEA Structured Cone 'Die-Cast Aluminum Chrome Speaker Frame 'Multi-Layer High-Temp VC 'Front-Plate & Voice-Coil Cooling 'Double-Laminated Integrated Spider Tinsel-Lead Design ·25.4mm / 1" Hi-Excursion Surround 'Push & Insert Wire Terminals 'Die cast aluminum basket w/ white chrome finish 'Double stack 160oz magnet '3" dual voice coil 'Double laminated poly-cotton spider w/ woven tinsel leads '1" tall surround, glass impregnated paper pulp cone Model.................................OLM1612.......OLM1615......OLM2412..........0LM2415 Watts Peak Power...............3200..................3200..................4800...............4800 Watts RMS Power................1600...................1600...................2400................2400 DVC Imp./Ohms....................1+1.....................1+1.....................1+1..................1+1	$599 $649 $699 $749

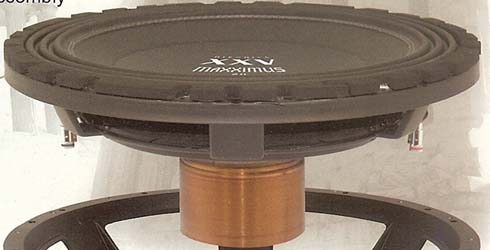

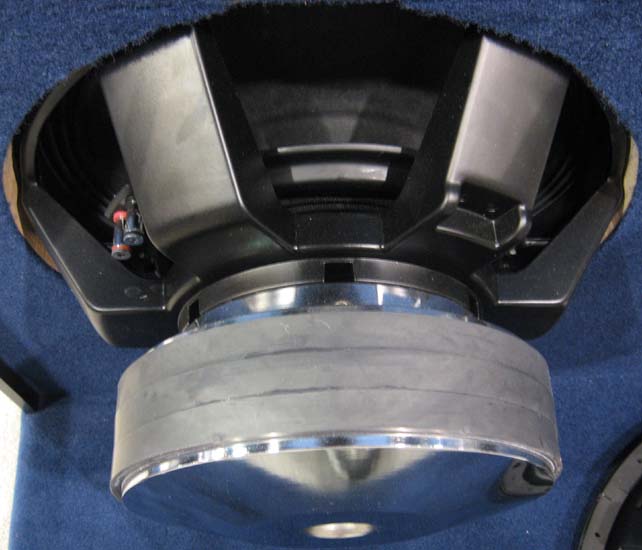

Maxximus Series MAXX12-540 12" 540 Oz Magnet US $529.95 MAXX15-540 15" 540 Oz Magnet US $559.95 MAXX18-540 18" 540 Oz Magnet US $629.95		The Maxximus subwoofers are a two part (sold separately) "Frame in Frame" assembly consisting of the BASS-FRAME and CONE-KIT. The BASS-FRAME consists of a pre-assembled 540 oz. triple stack magnet assembly and an ultra-rigid die cast aluminum speaker frame with self centering guide holes to perfectly align the CONE-KIT assembly. These are available in 12", 15" and 18" sizes. The CONE-KIT which is available in 12", 15" and 18" sizes, 0.7/1.0/1.4 and 2.0-0hm DVC coil configurations, consists of a pre-assembled "w" style surround, Vinyl Embedded - FEA pressed paper cone and dust cap, 4" Flat Wire - High Temp - Black Aluminum Former, Triple Stacked Conex Damper with 6 parallel wired tinsel leads all precision aligned with-in a stamped steel reinforced assembly frame to "drop right in" to the MAXX-FRAME assembly. The MAXX-FRAME and CONE-KIT combine to make the Maxximus subwoofer one of the most versatile and technologically advanced subwoofer kits you can buy. In the event of a damaged part, the Maxximus can be re-coned in minutes with out cutting, grinding or gluing. Simply remove 16 screws securing the CONE-KIT to the BASS-FRAME, remove the damaged CONE-KIT and insert the new CONE-KIT and screws. These subwoofers are designed for the highest possible SPL readings and unparalleled performance and power handling.At over 6000 watts of continual power handling, these subs can take a massive beating and continue to handle all the abuse you can through at it. BASS-FRAME MAXX12-540: 12" frame and magnet assembly Triple stack 540oz high intensity grade ferrite ring, Precise CNC machined top & back plate w/ polish chrome plating, magnetic pole with pie cut ventilation to lower reactance and distortion. MAXX15-540: 15" frame and magnet assembly Triple stack 540oz high intensity grade ferrite ring, Precise CNC machined top & back plate w/ polish chrome plating, magnetic pole with pie cut ventilation to lower reactance and distortion. MAXX18-540: 18" frame and magnet assembly Triple stack 540oz high intensity grade ferrite ring, Precise CNC machined top & back plate w/ polish chrome plating, magnetic pole with pie cut ventilation to lower reactance and distortion. Cone-Kits MAXX12-0.5: 12" / DVC O.5-0hm $262.50 MAXX12-0.7: 12" / DVC O.7-0hm $262.50 MAXX12-1.0: 12" / DVC 1.0-0hm $262.50 MAXX12-1.4: 12" / DVC 1.4-0hms $262.50 4" voice coil, Triple Sandwiched Spider with woven tinsels on each spider, W surround, Custom reinforced Kevlar/Pulp cone, Custom Die cast aluminum basket, drop in recone using n alignment tools and no glue. MAXX15-0.5: 15" / DVC O.5-0hm $288.75 MAXX15-0.7: 15" / DVC O.7-0hm $288.75 MAXX15-1.0: 15" / DVC 1.0-0hm $288.75 MAXX15-1.4: 15" / DVC 1.4-0hms $288.75 4" voice coil, Triple Sandwiched Spider with woven tinsels on each spider, W surround, Custom reinforced Kevlar/Pulp cone, Custom Die cast aluminum basket, drop in recone using n alignment tools and no glue. MAXX18-0.5: 18" / DVC O.5-0hm $325.50 MAXX18-0.7: 18" / DVC O.7-0hm $325.50 MAXX18-1.0: 18" / DVC 1.0-0hm $325.50 MAXX18-1.4: 18" / DVC 1.4-0hms $325.50 4" voice coil, Triple Sandwiched Spider with woven tinsels on each spider, W surround, Custom reinforced Kevlar/Pulp cone, Custom Die cast aluminum basket, drop in recone using n alignment tools and no glue.
