Description
|
|
|
Factory installed
audio systems lack power and performance on both ends of the spectrum:
from stereo images usually lack details, and bass tend to be non existent.
If you are a "budget minded customer" who chooses to keep the factor
installed head unit; TNT amps offer affordable, non-compromising, easy-install
solutions.

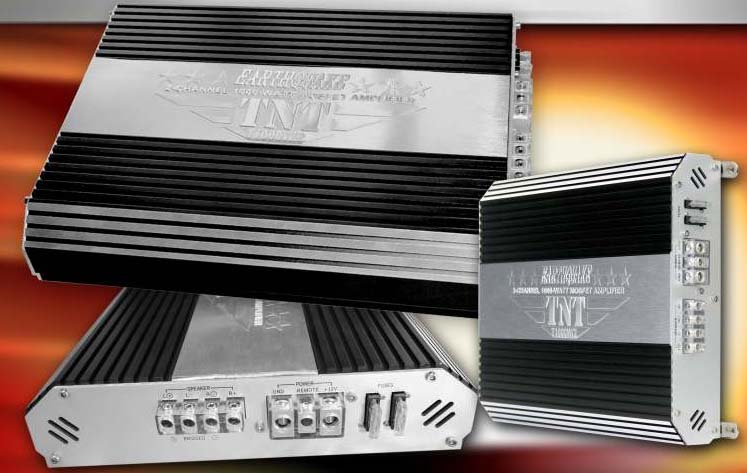

The TNT Xplosive amps are designed
to meet the needs of the entry level customers, without compromising
performance, or "breaking the bank". They are available in three versatile
models: TNT300(2CH), TNT600(4CH) and TNT900(5CH). The low-profile, slim
design heat sink by no meant implies "lesser power; the TNT amplifiers
pack more watts and more features per cubic inch than any others. All three
models come equipped with variable crossovers with high pass, low pass
applications.
Common Features
Damping Factor:
>800
Cross over slopes:
24dB/OCT
THD: >0.005
SNR: 90dB
Class: A/B
Speaker Connection:
8-Gauge
Power Connection:
4-Gauge
Input Type:
Independent Low Level RCA or High Level
|
TNT500W/2
2 Channel
US $139.95
|
|
- Number of
channels: 2
- Max Power output:
500 Watts
- RMS Power 4-Ohm
Bridged: 1 x 300
- RMS Power 2-Ohm
Stereo: 2 x 150
- RMS Power 4-ohm
stereo: 2 x 100
- Dimension:
2.3125" x 9.75" x 9.3125"
|
TNT1000W/2
2 Channel
US $159.95
|
|
- Number of
channels: 2
- Max Power output:
1000 Watts
- RMS Power 4-Ohm
Bridged: 1 x 400
- RMS Power 2-Ohm
Stereo: 2 x 300
- RMS Power 4-ohm
stereo: 2 x 200
- Dimension:
2.3125" x 9.75" x 13.3125"
|
TNT2000W/4
4 Channel
US $189.95
|
|
- Number of
channels: 4
- Max Power output:
2000 Watts
- RMS Power 4-Ohm
Bridged: 2 x 300
- RMS Power 2-Ohm
Stereo: 4 x 150
- RMS Power 4-ohm
stereo: 4 x 100
- Dimension:
2.3125" x 9.75" x 13.3125"
|

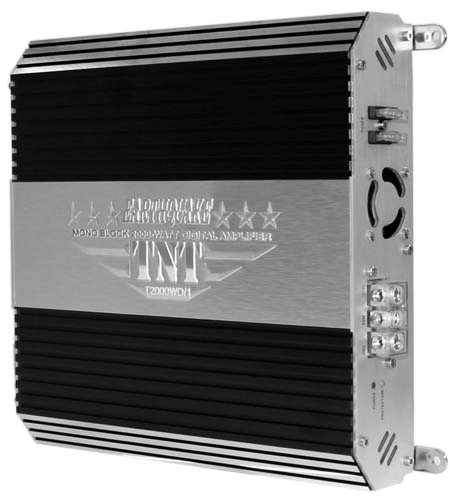

TNT2000WD1
2000
W Mono Amplifier
US $234.95
TNT2000WD1
2000
W Mono Amplifier RB
US $149.95
|
|
- Number of
channels: 1
- Class D Digital
Circuitry for high efficiency
- Max Power
output: 2000 Watts
- RMS Power 2-Ohm
Stereo: 1 x 1000
- Dimension:
2.31" x 9.75" x 13.3125"
|
|
|
The new Xtreme
Bass line of amplifiers offer a fresh new look for high performance amplifiers.
Moderately priced, these amps combine extreme looks and performance
in stylish package. "dressed to kill" with triple dipped chrome face
plate that house the "EZ ACCESS" recessed controls, "VU" power meters,
and turbo cooling fans. Cross-over knobs, gain controls, and switches
are laid out in an "EZ" access order that "make sense"; our goal is to
make the Xtreme Bass amps "easy to use"
Built-in variable low pass-filter
All time low-pass operation
Multiple variable cross-overs
Power monitoring "VU" meters
Chrome face plate
Turbo charged cooling fans
Anodized aluminum heat sink
Common Features:
Damping Factor: >800
Cross over slopes: 24dB/OCT
THD: >0.016
SNR: 104dB
Class: A/B
Speaker Connection: 12-Gauge
Power Connection: 8-Gauge
Input Type: Independent Low Level
RCA
|
300W.2
2 Channel
US $99.95
|
|
- Number of
channels: 2
- Max Power output:
600 Watts
- RMS Power 4-Ohm
Bridged: 1x400
- RMS Power 2-Ohm
Stereo: 2x250
- RMS Power 4-ohm
stereo: 2x130
- Dimension:
2 1/2" x 9 3/4" x 12 1/2"
|
600W.4
4 Channel
US $139.95
|
|
- Number of
channels: 4
- Max Power output:
1200 Watts
- RMS Power 4-Ohm
Bridged: 2x400
- RMS Power 2-Ohm
Stereo: 4x240
- RMS Power 4-ohm
stereo: 4x130
- Dimension:
2 1/2" x 9 3/4" x 13 3/4"
|

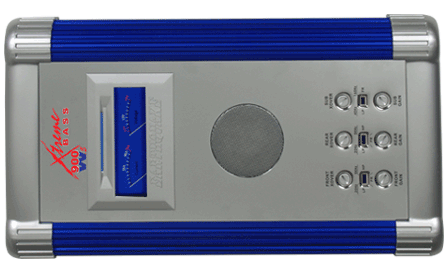

900W.5
5 Channel
US $Discontinued
|
|
- Number of
channels: 5
- Max Power output:
1800 Watts
- RMS Power 4-Ohm
Bridged: 3x400
- RMS Power 2-Ohm
Stereo: 4x240 + 1x500
- RMS Power 4-ohm
stereo: 4x130 + 1x400
- Dimension:
2 1/2" x 9 3/4" x 17 3/4"
|
|
|
Finding an amplifier
that delivers raging power and remains cool under pressure is almost
impossible, until now.
The PH line of A/B amplifiers have oversized
fully regulated Mosfet Power Supplies; these transistors have high switching
speed and generate no heat. Combined with Pulse Width Modulation, they stabilize
the amplifier output under varying battery conditions. The PowerHouse
A/B Class amplifiers are second to none.
Built-in variable crossover-VARIXR
Low pass, full range, or high pass
operationsIndependent
low level RCA inputs Independent high
level inputs
Crossed audio signal RCA outputs
Common Features:
Damping factor: >800
Cross over slopes: 24dB/OCT
THD: >0.016
SNR: 104dB
Class: A/B
Speaker connection: 8-Gauge
Recommended power connection:
4-Gauge
Input type: Independent Low Level
RCA Inputs or Speaker Level Inputs
|
PH800W/2
2 Channel
Class A/B
US $179.95
|
|
- Number of
channels: 2
- Max power output:
800 Watts
- RMS Power 4-Ohm
Bridged : 1 x 400
- RMS Power 2-Ohm
Stereo mono: 2 x 200
- RMS Power 4-Ohm
Stereo stereo: 2 x 125
- Dimension: (H
x W x L) 2.375" x 10.125" x 8.5 "
|
PH1000W/2
2 Channel
Class A/B
US $269.95
|
|
- Number of
channels: 2
- Max power output:
1000 Watts
- RMS power 4-ohm
mono: 1 x 435
- RMS Power 4-ohm
stereo: 2 x 210
- Dimension:
2.375" x 10.125" x 10.375 "
|

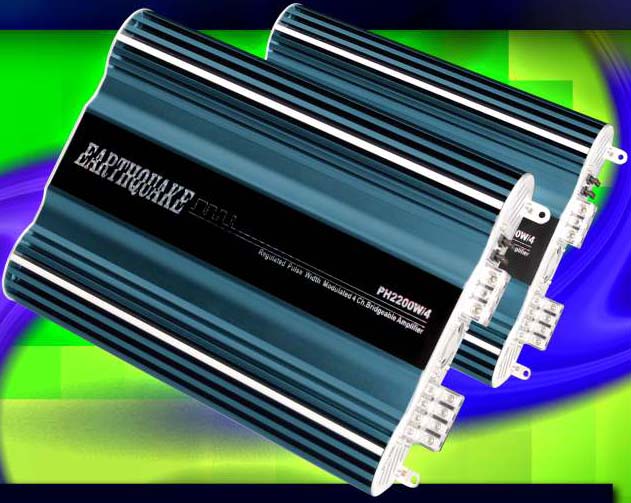

PH2200W/4
4 Channel
Class A/B
US $349.95
|
|
- Number of
channels: 4
- Max power output:
2200 Watts
- RMS power 2-Ohm
stereo: 4x350
- RMS power 4-ohm
stereo: 4x175
- Dimension:
2.375" x 10.125" x 13.375"
|
|
|
Designed with
the extreme users and "DB draggers" in mind, the new PowerHouse class
"D" digital amplifiers address esthetics and high power as well. Internally
these amplifiers use more copper per square inch than any other out
there: 3oz copper tracers. High-capacity, top-quality power supply and
output components are hand selected and matched for optimum performance.
The symmetrically loade3d circuit design guarantees accuracy, speed delivery,
power and flexibility: a trademark of the PowerHouse amplifier.
Built-in variable low pass-filter
All time low-pass operation
Two independent low level RCA inputs
180-degree variable phase shift
Heavy duty custom power connection
Linkable PHD10000
PHD10000: Gain
Settings
PHD 10000: Easy
Wiring Configuration
Common Features:
Damping factor: >800
Cross over slopes: 24dB/OCT
THD: >0.016
SNR: 104dB
Input type: Independent Low Level RCA
|
PH2000W/D1
Digital Mono
US $379.95
|
|
- Number of
channels: 1 / Mono Block
- Max power output:
2000 Watts
- RMS power 2-ohm:
1000 Watts
- RMS power 4-ohm
stereo: 500 Watts
- Class: "D" Digital
- Speaker connection:
8-Gauge
- Recommended power
connection: 4-Gauge
- Dimension:
2.375" x 10.125" x 12 "
|

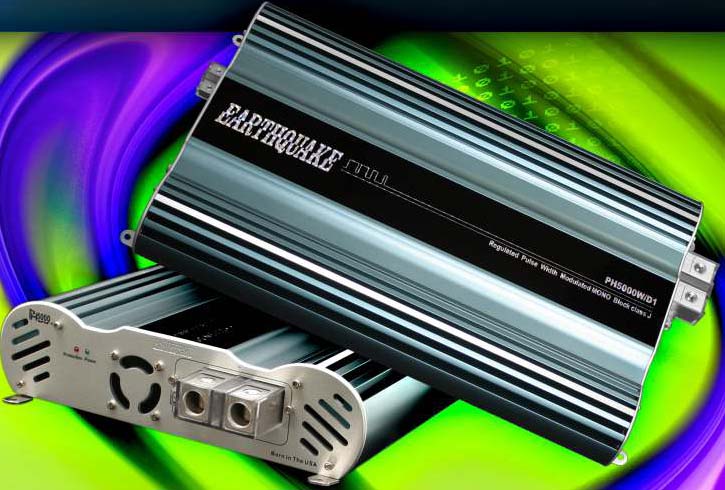

PH5000W/D1
Class D Mono 5000W Amplifier
US $849.95
|
|
- Number of
channels: 1 / Mono Block
- Max power output:
5000 Watts
- RMS power 2-ohm:
3000 Watts
- RMS power 4-ohm:
1500 Watts
- Class: "J" Digital
- Speaker connection:
8-Gauge
- Recommended power
connection: 0-Gauge
- Dimension:
2.375" x 10.125" x 15"
|
PH10000W/D1
PowerHouse
5000 Watt/amp
Digital Mono
US $849.95
You Need 2 for the 10,000
Watts!!!
|
|
Number of
channels:
1 / Mono
Block
Max power output:
5000 Watts / Linked = 10000 Watts
RMS power 2-ohm:
3000 Watts / Linked = 6000 Watts
Class: "J" Digital
Speaker connection:
8-Gauge
Recommended
power connection: 0-Gauge
Dimension:
2.375" x 10.125" x 16.5"
|

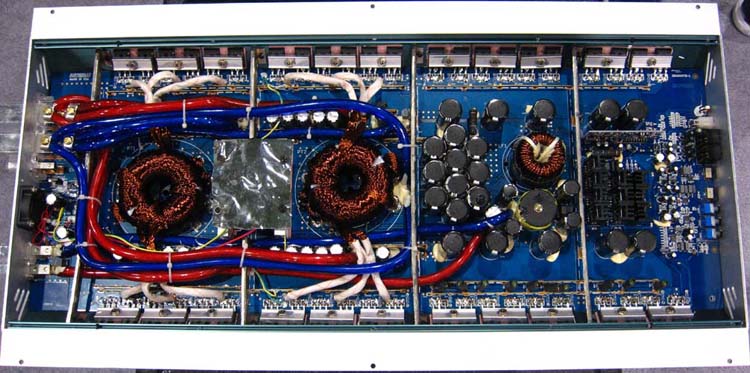

PH20000W/D1
10000
Watt RMS Digital Mono Subwoofer Amplifier
US $2999.95
|
|
- Number of
channels: 1 / Mono Block
- Max power output:
20000 Watts
- RMS power 2-ohm:
12000 Watts
- Class: "J" Digital
- Speaker connection:
8-Gauge
- Recommended power
connection: 0-Gauge
- Dimension:
2.375" x 10.125" x 36"
|
