WAKE UP! Don't fall asleep just yet, we're getting to the exciting part!

The XSTATIC BATCAP© is simply a battery that can discharge just a s quickly as a capacitor. Therefore, you have a constant supply of electrons that will discharge at lightning speed. This puts less strain on your stock alternator and battery. It also recharges faster than a conventional battery since the internal resistance is low. How about the install? Well I'm sureyou can find a place to put this 2.5lb. baby and his 5lb. big brother. Don't let the size fool you though. These BATCAP's can crank your car, and you can bet we put that to the test!

The cost is another remarkable feature since the 300 model costs the same as a "High End" stiffening capacitor and the400 model costs a little more. Remember, "good things come in small packages." (I was going to say that "SIZE" doesn't matter but, let's not offend anyone now.) Oh, by the way, the fact that the BATCAP© is capable of discharging in a RUSH over a 5-10 second period SCREAMS three letters, "SPL!"

• Model X300
• Specifications
• 12 Volt
• 2.5 Ah
• 300 Amps Peak
• 1 Hour at 2.5 Amps Draw
• 5 Minutes at 14 Amp Draw
• Cycle Life 3 to 6 Years
• 4.5 MilliOhm Internal resistance per cell
• 6 Cells
• 2.72" High X 2.88 " Wide X 4.23" Deep
• 2.5 Lbs.
• Can be put in Parralel for more current draw for longer periods of time
• Can be put in Series for a higher Voltage
• BatCap Hookup

•  Model X400
• Specifications
• 12 Volt
• 5 Ah
• 400 Amps Peak
• 1 Hour at 5 Amps Draw
• 5 Minutes at 28.67 Amp Draw
• Cycle Life 3 to 6 Years
• 3 MilliOhm Internal resistance per cell
• 6 Cells
• 3.14" High X 5.44 " Wide X 3.7" Deep
• 5.0 Lbs.
• Can be put in Parralel for more current draw for longer periods of time
• Can be put in Series for a higher Voltage
• BatCap Hookup

Model 800
Meet our new and improved tough guy...Model 800.
The Model 800 weighs 14 lbs. and gives you an unbelievable 800 peak amps!
Auto racing enthusiasts and audio competitors alike have come up with some pretty creative
ideas for this battery.
20 Ah Reserve Capacity
800 Cranking Amps

BatCap Hookup

Model 2000
Meet our new and improved tough guy...Model 2000.
The Model 2000 weighs 34 lbs. and gives you an unbelievable 2000 peak amps!
Auto racing enthusiasts and audio competitors alike have come up with some pretty creative
ideas for this battery.
50 Ah Reserve Capacity
Dimensions 6.5 D X 7.75 W X 6.75 H
1000+ Cranking Amps
2000 Amps for 3 Seconds

BatCap Hookup


BATCAP - POWER PACK
ADVANTAGE? - YOU BET !!!
•SLOWS VOLTAGE DROPS
•HOLDS POWER
•CONTAINS (1) BATCAP 600 (MADE EXPRESSLY FOR THE POWER PACK)
•CONTAINS (1) 35 FARAD CAPACITOR
•GIVES YOU THE BEST OF BOTH WORLDS
 THE POWER OF A BATCAP AND THE SPEED OF A CAPACITOR
•PACKS 1,000+ PULSE AMPS
•ONLY 10.25 LBS  PACKAGED TO SHIP
•7 ” W x 3” T x 8 3/8” T

BatCap Hookup

Rated Voltage 16.2V
Surge Voltage 17.1V
Rated Current 100Amps
Max Current 25c >400Amps
Max Internal Resistence AC 25milliohms, DC 3A 30 milliohms
Dimensions 182mm W x 188 mm H x 100 mm D
Lifetime 4000 Hours
Cycle Life 500000 Cycles

BatCap Hookup

8400
Michael Jones says Batcap is the competitive answer!

Michael Jones opened a small shop in Lubbock, TX, in 1997.
He soon started to compete in local sound offs around Texas.
His goal was to gain credibility and grow his business by excelling on the competition circuit.

At the IASCA Finals in Dallas in October of 1998, Jones met and teamed up with woofer manufacturer
Digital Designs. In early 1999, Jones was hitting 170 dB on a regular basis. Voltage problems, however,
were limiting the team's quest for bigger SPL numbers.

The Xstatic Batcap proved to be the answer. The Batcap was perfect for contest burps. The Batcap
recharged quickly and would post exactly the same SPL number on the next run. The fact that Batcap
is extremely small was an added plus.

175 dB is old hat now for Jones and his pit crew John Johnson, Jake West and Anthony Jones.

Dimensions - 12.5 x 9.5 x 9
Size And Weight - 70 Pounds
Amp Information
12 Volt - 9600 Amps
14 Volt - 9600 Amps
16 Volt - 8400 Amps
Special Information - These are used in the worlds loudest vehicle - Michael Jones Lubbock TX

BatCap Hookup

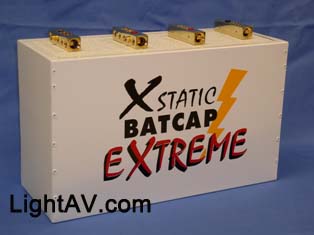

•AS POWERFUL AS (4) FOUR OF OUR 8400 MODEL
•WEIGHS LESS THAN 65 LBS.
•EQUIVALENT TO 26 STANDARD CAR BATTERIES
•4 X 0/1G Power and Ground Outputs
•10 x 4G Power and Ground Outputs
•JUST ONE EXTREME COULD CRANK (48) FORTY-EIGHT V-8 CHEVYS ( AT ONCE !!! )
•15” L x 5 " W x 9 ” H
•12 VOLT & 16 VOLT CONFIRGURATIONS AVAILABLE
•LESS THAN 800 CUBIC INCHES ( PERFECT FOR COMPETITION )

BatCap Hookup

Charger
XStatic has released an all new 5 stage battery charger that is totally automatic
XStatic Offers 2 models to choose from
12 Volt
14/16 Volt
These five stage microprocessor controlled battery chargers will charge a battery to 100%
FEATURES

FULL 5-L.E.D. DISPLAY
Eliminates guessing the battery’s condition or State Of Charge by displaying State Of Charge .
If a charging error should occur, the Charge Error Condition is displayed using 3 of the 5 L.E.D.’s.
An Ammeter displays real time charging current information.

CHARGE PROTECTION
Reverse battery, short circuit, input overload, output overload, and over temperature protection
are standard features.
Programmed safety features include the “Charge Time Monitor”, which safely shuts down charging,
if charge time is exceeded and Thermal Runaway Detection (a common occurrence when cells age and fail)
terminates further charging.

CHARGE ALGORITHM
True Microprocessor control, programmed with a proprietary software, applies an I-E-I charge algorithm.
Charges at a Constant Current rate until battery voltage reaches the Constant Voltage Mode.
Then regulates voltage until battery has reached 100% charge, where it transitions to Float Mode.
It remains in Float Mode until the 28 Day Recycle elapses, or returns to Constant Current Charging
if batteries have been loaded down by a load.

PRE-QUALIFICATION TEST
Tests for shorted cells, sulfated battery, wrong battery types and high internal battery resistance
before fast charging begins.

SLOW (SOFT) START
Gently ramps up to the required output charge level which avoids “bashing” the battery

MINIMAL LOADING
Disconnected from A.C. power, but with output leads left connected to battery,
battery drain is much less than 1mA.

STANDARD PACKAGING
Dimensions, 6.75 Wide by 5.88 Tall by 10.0 Long.
One unit per carton, shipping weight:  32 pounds.

BatCap Hookup

• MINI CAP 50
• 10 Farad Capacitor
• Capacitance Tolerance -10% / + 30%
• Rated Voltage 16.2 Volt
• Surge Voltage 17.1 Volt
• Rated Current 50 Amps
• Max Current 250 Amps
• Max Storage Energy 1,312.2 Joules (0.3645Wh)
• Weight 1.4 Lbs
• Lifetime 10 Years
• Cycle Life 500,000 Cycles
• Dimensions - 12.5 x 9.5 x 9
• Complete Spec Sheet
• BatCap Hookup

• MINI CAP 100
• 35 Farad Capacitor
• Capacitance Tolerance -10% / + 20%
• Rated Voltage 16.2 Volt
• Surge Voltage 17.1 Volt
• Rated Current 100 Amps
• Max Current >500 Amps
• Max Storage Energy 4590 Joules (1.27Wh)
• Weight 1.75 Lbs
• Lifetime 10 Years
• Cycle Life 500,000 Cycles
• Dimensions - 182 X 188 X 100 MM
• Complete Spec Sheet
• BatCap Hookup

• MEGACAP 150
• Meet the newest player on the Xstatic team!
• The all new MEGACAP 150!
• Xstatic sets a new standard in high energy and power density with the introduction of
• the 50 Farad 16V MEGACAP. This is made possible by proprietary electrode
• formulation and specially developed electrode manufacturing process. Resulting in a
• very low ESR
• 50 Farad Capacitor
• Capacitance Tolerance -10% / + 20%
• Rated Voltage 16.2 Volt
• Surge Voltage 17.1 Volt
• Rated Current 150 Amps
• Max Current  >750 Amps
• Max Storage Energy 5625 Joules (0.3645Wh)
• Weight 2 Lbs
• Lifetime 4000 Hours
• Cycle Life 500,000 Cycles
• Complete Spec Sheet
• BatCap Hookup
